Humidification Nozzles

Spraytech Systems has a comprehensive range of Humidification nozzle-related products that offer quality spray results, connecting your existing air and fluid lines to obtain the right level of humidity for your environment. There are a variety of industrial spray nozzle options available that can be used for many purposes. Visit our spray nozzles page to get the full range of spray nozzles. Having the correct spray equipment for Humidification is essential for the following industries:
  • Horticulture
  • Dairy
  • Coffee Roasting
  • Restaurants

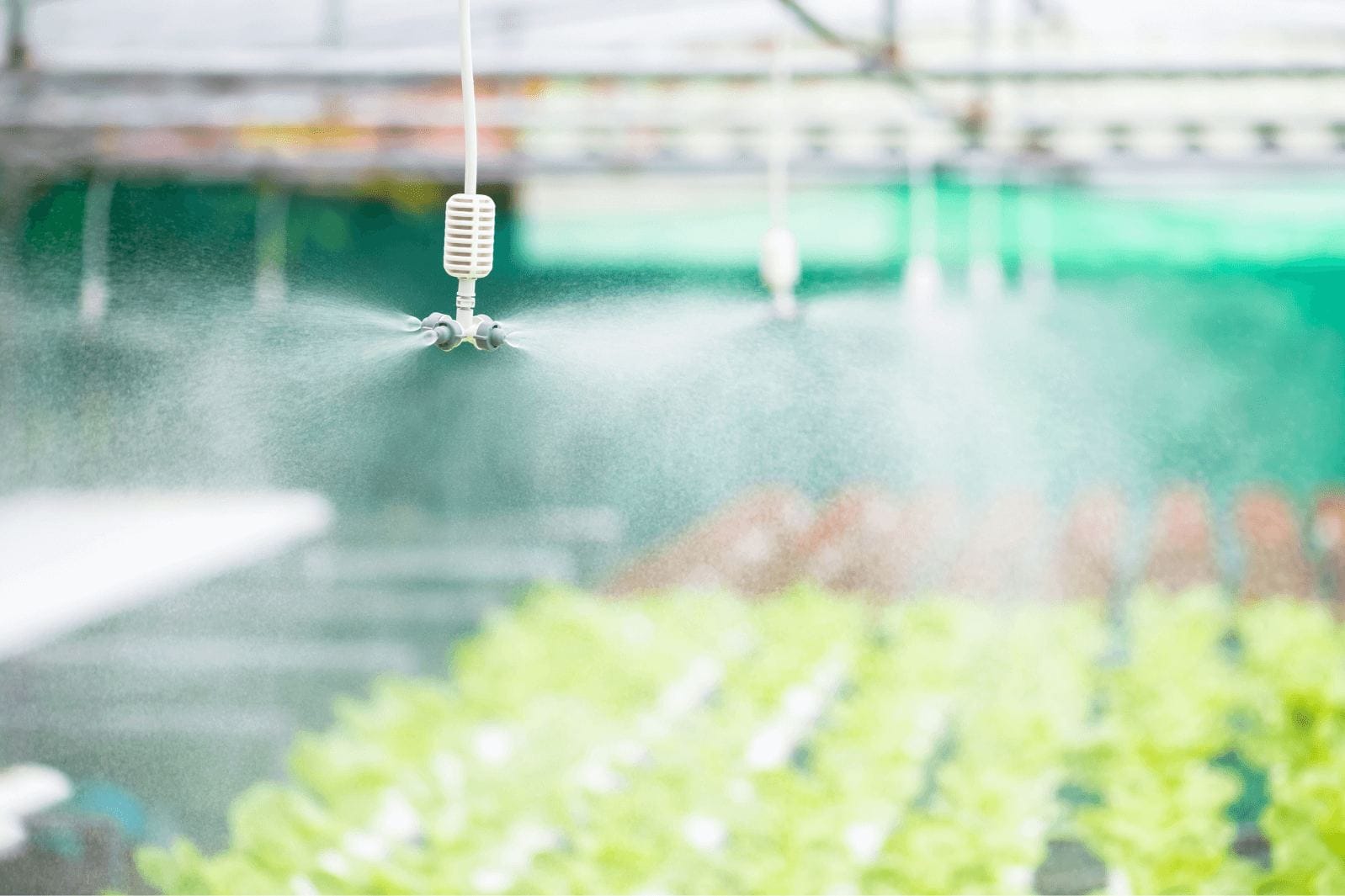

misting spray system emitting vapour into the air over agriculture crops

Our Range of Humidification Nozzles

Hydraulic Atomising Nozzles Type CX & MX

Our Hydraulic Atomising Nozzles Type CX & MX are designed to produce fine atomised droplets using hydraulic pressure. These hydraulic atomising nozzles are available in stainless steel or brass – as a tip assembly, or as a single piece with 1/4″ BSP thread. Flow rates 5.2L/hour to 520L/hour, operating pressure 2 Bar to 80 Bar making these atomising nozzles highly effective when adjusting your humidity levels for any given environment.

spraytech dissembled stainless steel hydraulic atomising nozzle cx mx
Stainless Steel Hydraulic Automising Nozzle Type CX & MX

spraytech euspray hydraulic atomiser cx mx spray nozzle chart

Fogging Nozzles

Our Fogging Nozzles are designed to produce mist with low impact with a variety of spray patterns. The water mist and fog nozzle contains nominal flow rates of 19, 27 and 38 litres per minute at 3 Bar pressure. Their flow rate and droplet size can be modified by adjusting the pressure, making them suitable for a variety of applications including humidification.

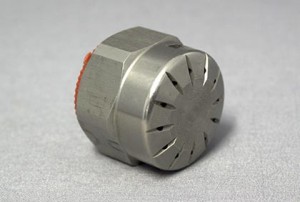

spraytech stainless steel fogging nozzle
Stainless Steel Fogging Nozzle - Type FG

spraytech fogging nozzle chart table

Multi-Head Mist Nozzles

Our Multi-Head Misting Nozzles are designed with 7 threaded sockets fed from a gallery in the main body producing spray patterns that cover a very wide arc. At Spraytech these nozzles are available in 3 different sizes – ¾”, 1” or 1 ½” BSPF with flow rates that range from 3.1 L/min to 350 L/min and operating pressures from 1 to 10 Bar. This means you will be able to find the right multi-head misting nozzle for a variety of humidification applicationsB

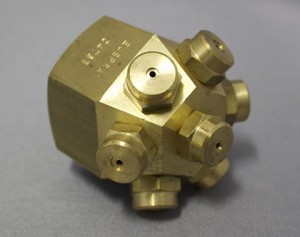

spraytech brass multi head mist nozzle
Brass Multi-Head Misting Spray Nozzle - Type 7B

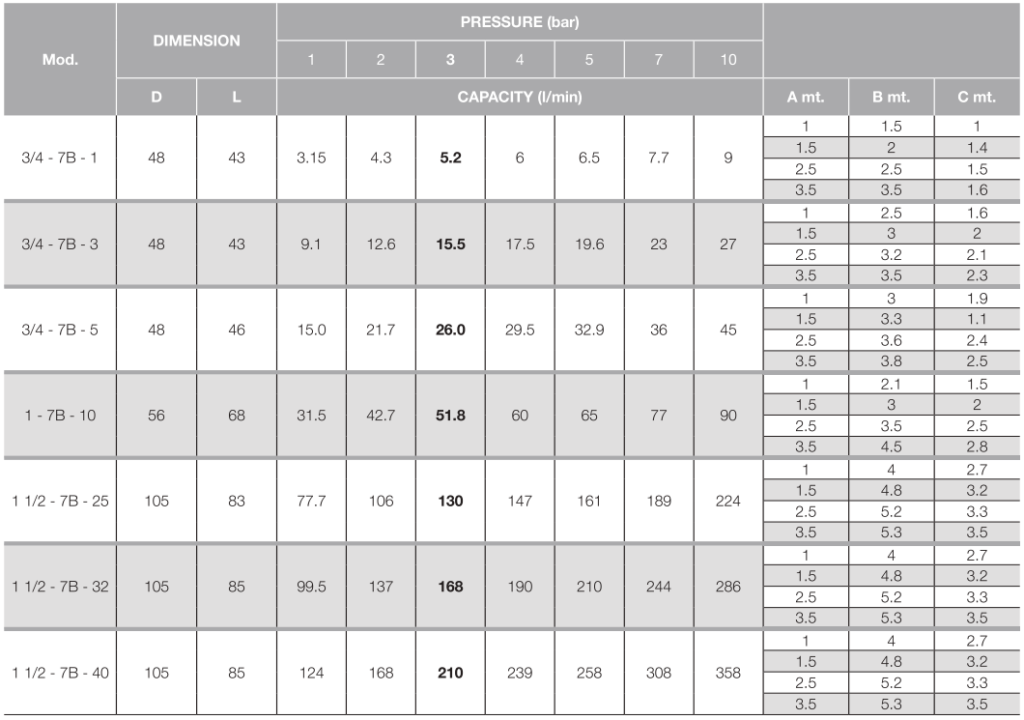

spraytech multi head misting nozzle chart

✔ Spray Nozzles In Sydney (NSW)

✔ Spray Nozzles In Melbourne (VIC)

✔ Spray Nozzles In Brisbane (QLD)

✔ Spray Nozzles In Perth (WA)

✔ Spray Nozzles In Adelaide (SA)

✔ Spray Nozzles In Canberra (Australian Capital)

Talk to Spraytech about Humidification Nozzles

It doesn’t matter what the industry is, Spraytech has the right Humidification option for you.

Just give us a call on (08) 9259 4350 or send us a message through our enquiry form.
