Hydraulic Atomising Nozzles – Type CX & Type MX

Loading...
Loading...

Overview

About Spraytech’s Type CX & MX Hydraulic Atomising Nozzles:

Use high fluid pressure to produce a fine mist for dust suppression and evaporative cooling. Available in Stainless Steels or Brass, as a tip assembly, or as a single piece with 1/4″ BSP thread. Flow rates 3.6 L/ hour to 320 L/ hour; operating pressure 2 Bar to 30 Bar.

How to order:

To order, please specify body style MX, tip CX, or tip assembly; capacity code and material

Or

To order, please specify thread size, model, capacity code or flow rate and operating pressure, material and whether the filter is required – e.g. 1/4 MX22 SS with filter.

If ordering the CX Tip specify whether the tip assembly body and retainer are required, and their material, too.

Applications

Hydraulic Atomising Spray Application:

  • Humidifying
  • Cooling
  • Dust control
  • Deodorizing
  • Gas scrubbing

Find out more:

Documents

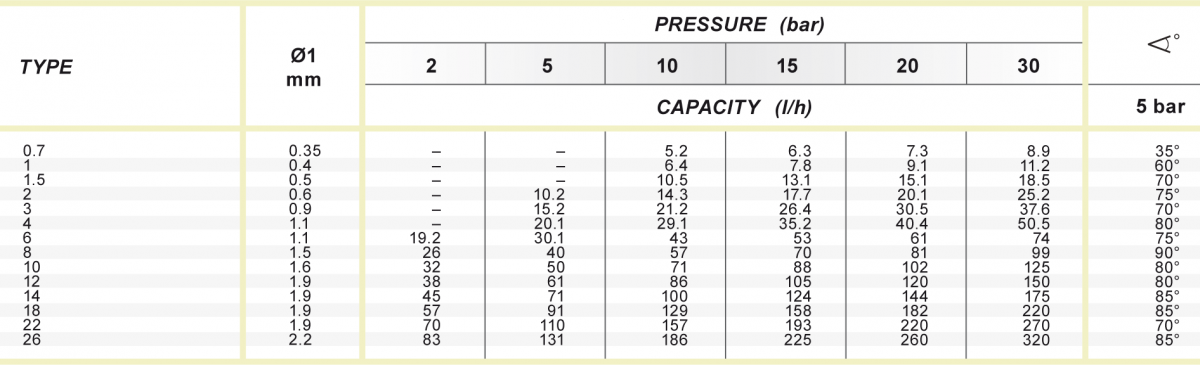

Hydraulic Atomising Type CX & Type MX Nozzle Chart
