Overview

About Spraytech’s Fog & Misting Nozzles:

Fog nozzles can create a variety of spray patterns and flow capacities and are suitable for a range of functions and industries. Fogging Nozzles Type FG produce a high volume of fine mist through multiple small apertures. Flow rate and droplet size can be modified to meet your needs, as can the coverage and spray distribution, so talk to us about the wide range of different misting nozzle configurations we provide.

Spraytech Systems misting nozzles can produce varying degrees of water mists and fogs, with nominal flow rates of 19, 27 and 38 litres per minute at 3 Bar pressure. The standard thread size is ¾ inch, although larger sizes are available on request.

Any low viscous fluid under 10 centipoise (cP) can generally be used with a fog nozzle, and they continue to operate efficiently in almost any temperature.

Applications

Fog & Misting Nozzle Spray Applications:

Misting nozzles are designed to produce low impact, low flow rate mist patterns, and can be adjusted to create dry and wet fogs as well. There are multiple applications in which fog nozzles are used, including:

  • Cooling
  • Dust suppression
  • Humidifying
  • Moistening
  • Evaporative cooling
  • Gas cooling

Find out more:

Documents

Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Fog & Misting Nozzles or submit an enquiry below.

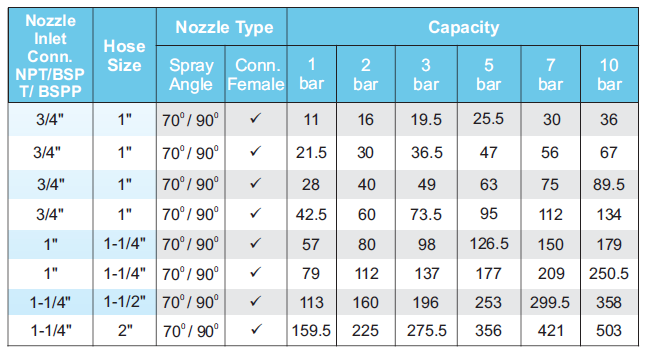

Fog & Misting Nozzle Chart
