Overview

About Spraytech’s Multi Head Spray Nozzles:

The Type 7B Multi Head Spray Nozzle has 7 threaded sockets each fed from a gallery in the main body. The spray pattern covers a very wide arc.

A variety of spray nozzles can be fitted to the body, each readily removable for cleaning or replacement. From a vertically downwards direction 65% of flow capacity falls within a circle diameter C. Circle diameter B indicates the approximate total wetted area.

Thread sizes 3/4″ , 1″ or 1 1/2″ BSPF; flow rates 3.1 L/ min to 350 L/ min; operating pressures 1 to 10 Bar.

Materials:

  • Brass
  • Stainless Steel

How to order:

To order, please specify thread size, nozzle code, size code, and material – e.g. 3/4-7B-5 B

Applications

Multi Head Nozzle Spray Applications:

  • Evaporative cooling and humidification
  • Gas cooling
  • Dust control
  • Gas Scrubbing
  • Tank Rinsing/Washing
  • Pasteurisers

Find out more:

Documents

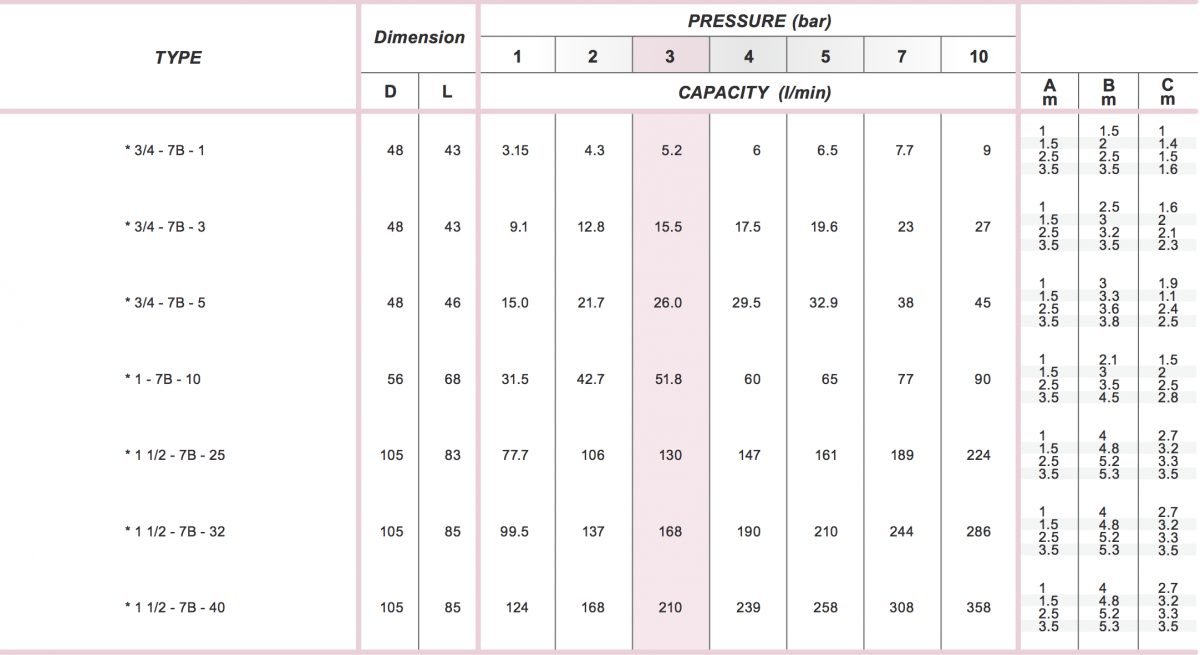

Multi Head Spray Nozzle Chart
