Wide Hollow Cone Nozzles – Type A3



About Spraytech’s Wide Hollow Cone Type A3 Spray Nozzle:

The Type A3 Wide Hollow Cone Spray Nozzle is of the tangential type and provides a spray angle of 120°.

  • Removable cap
  • Spray at 90° from the inlet axis

Rated flows from 0.2 L/ minute to 90 L/ minute; operating pressures from 0.75 Bar to 6 Bar. Thread connections from 1/8″ to 3/4“ BSP, male or female..


This spray nozzle product is available in Stainless Steel AISI Grade 303 and Brass. On request – Stainless Steel AISI Grade 316, PVC and others.

How to order:

To order, please specify thread type, nozzle code, size and material – e.g. 1/4F-A3-10B.


Wide Hollow Cone Type A3 Spray Nozzle Applications:

  • Washing and cooling of air and gas
  • Dust control
  • Surface treatment
  • Humidification
  • Water aerating
  • Roof cooling

Find out more:


Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type A3 Wide Hollow Cone Wide Spray Nozzle or submit an enquiry below.

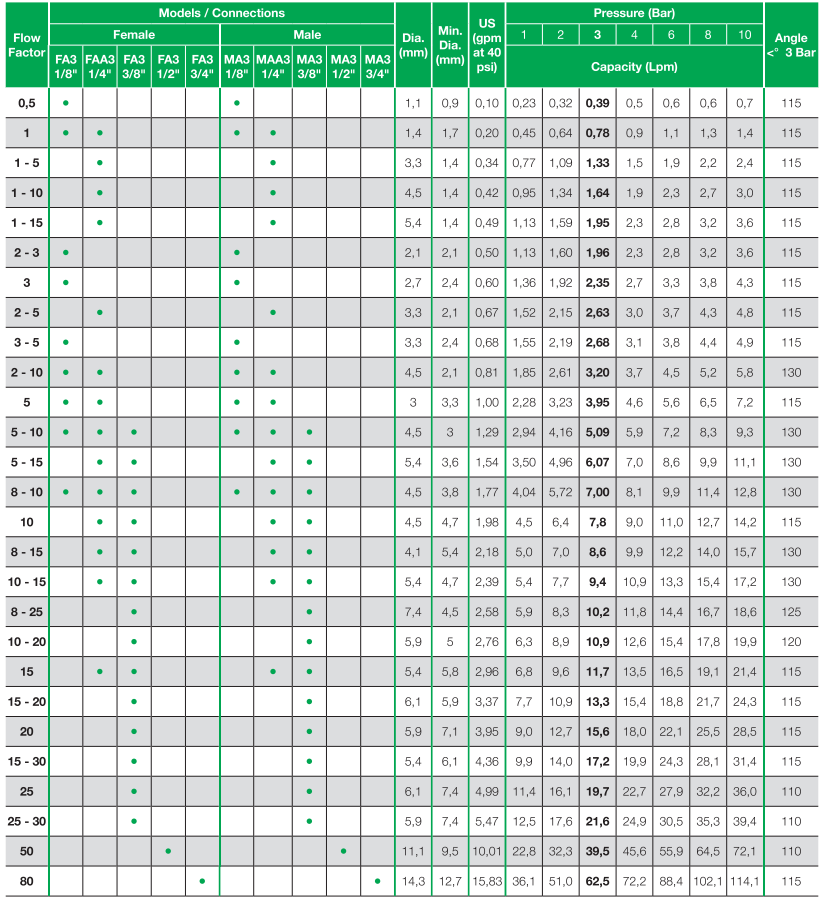

Wide Hollow Cone Tangential Type A3 Spray Nozzle Chart
