Overview

About Spraytech’s Full Cone Tangential Nozzles:

Type BB5 and BB6 Full Cone Tangential Nozzles are designed to create the spray pattern by introducing the liquid tangentially into a whirl chamber. The full cone spray is obtained with the aid of specially arranged grooves, milled into the nozzle bottom, which cause an adequate part of the rotating liquid flow.

The flow pattern from the nozzle orifice is in the form of a full cone with water droplet size nominally 1000 to 3000 microns and a uniform distribution. This style has an internal vane.

Rated flows from 0.6 L/ minute to 52 L/ minute; operating pressures from 0.5 Bar to 7 Bar; spray angles 60° to 120°. Thread connections from 1/8″ to 1/2″BSPT, male or female.

Materials:

  • Brass
  • Stainless Steel AISI Grade 303

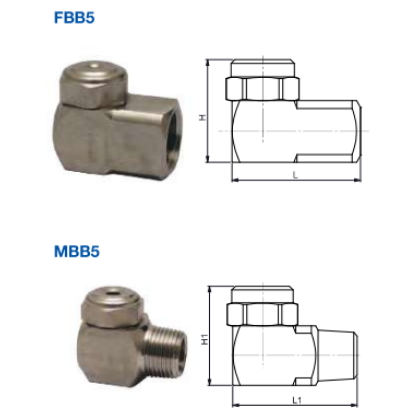

Full Cone Tangential BB5:

  • Removable cap
  • 90° spray from the inlet axis

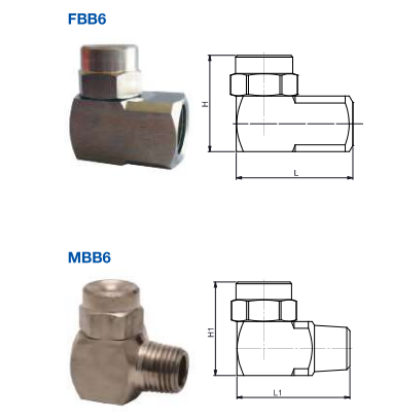

Full Cone Tangential BB6:

  • Like BB5 but with wide angle

Applications

Full Cone Tangential Spray Applications:

Our Tangential Full Cone Nozzles are particularly suited for closed circuit spraying of liquids with a high quota of solid matter, or for fire fighting applications. The atomising fluid is tangentially supplied to a swirl chamber, where it is put into rotation.

Find out more:

Documents

Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type BB5 & BB6 Full Cone Tangential Nozzles or submit an enquiry below.
Full Cone Tangential Type BB5 Nozzle Chart
