Overview

About Spraytech’s Type B3 Full Cone Square Spray Nozzle:

Type B3 Square Full Cone Nozzles use an internal swirl plate to give a uniform full cone spray pattern with a 60° angle. The aperture is modified to give a square pattern.

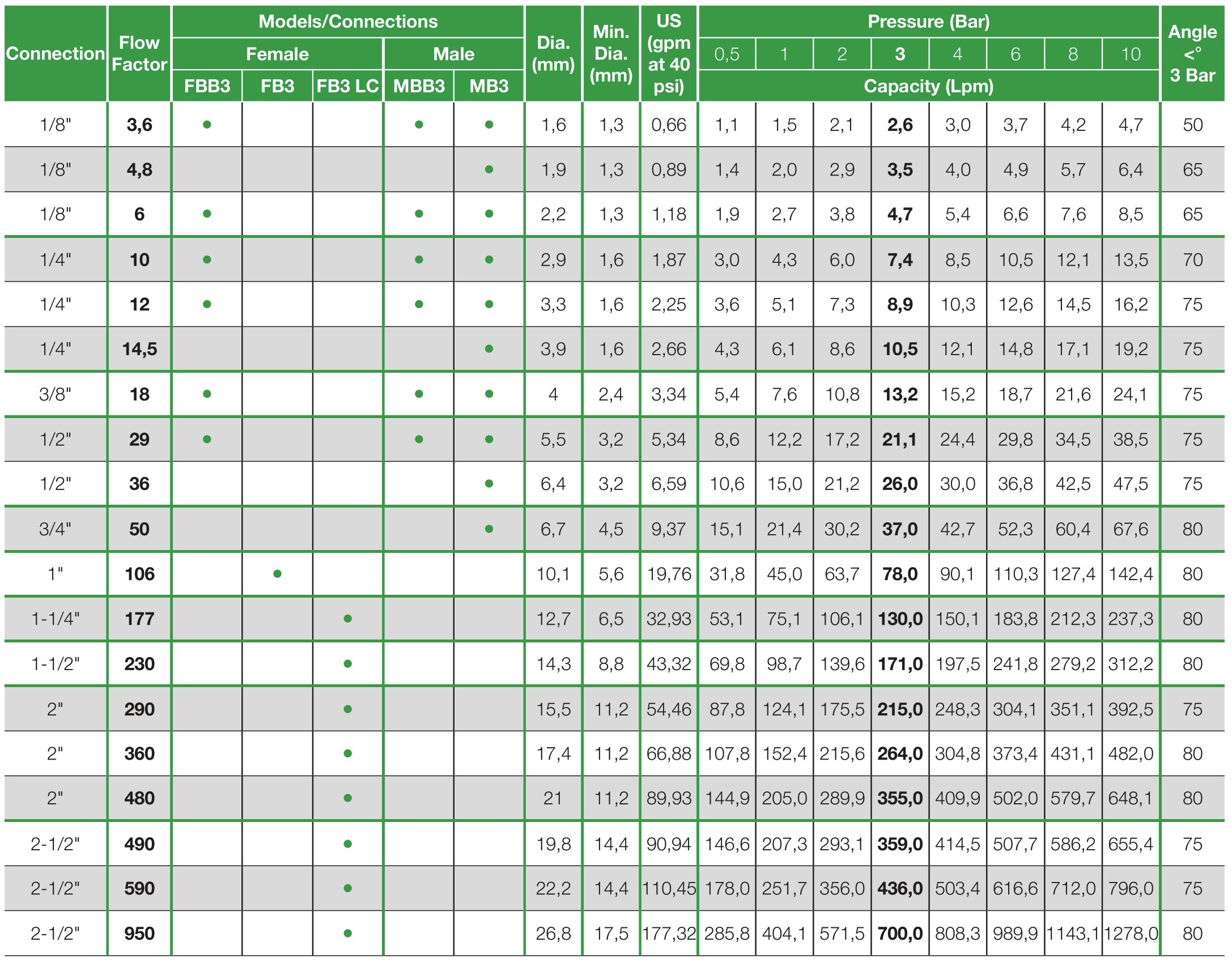

Rated flows from 1.5 L/ minute to 1040 L/ minute; operating pressures from 0.75 Bar to 7 Bar; thread connections from 1/8″ to “BSPT male and 1/8″ to 2 ” BSPT female.

Full Cone Square B3 – Variations:

  • Types BB have removable caps
  • Types B one piece
  • Large capacity types F-B3 are cast Stainless Steel AISI Grade 316 with machined threads.

Materials:

  • Stainless Steel AISI Grade 303
  • Brass

How to order:

To order, please specify the thread size and type, nozzle code, capacity code or flow rate and operating pressure, and material – e.g. 1/4 MB3-10S.

Applications

Type B3 Full Cone Square Spray Applications:

  • Installations with many nozzles in which the square spray provides a better coverage.

Find out more:

Documents

Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type B3 Full Cone Square Spray Nozzle or submit an enquiry below.

Full Cone Square Nozzles Type B3
