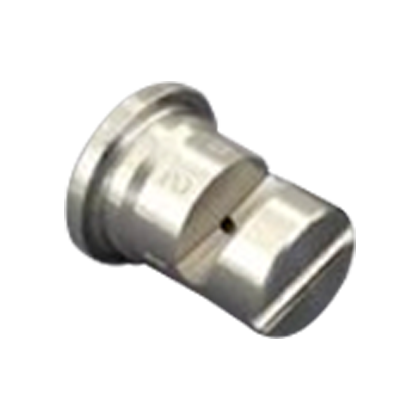

About Spraytech’s Wide CD3 Flat Spray and DH Spray Deflected Spray Nozzles:

Our Type CD3 Wide Flat Spray Nozzle and Deflected Spray DH Nozzle produce a very wide spray pattern of up to 165°, and are able to be used at lower operating pressures than most other types of nozzle.

The wide angle, low pressure flat spray pattern is created through water being projected onto a deflection surface, which produces an even spray that is capable of covering a large area in a mist effect. This makes wide flat spray nozzles and deflected spray nozzles ideal for use in any sort of application where wide coverage is required.

In addition, the orifice is designed so as to minimise the risk of clogging, reducing maintenance downtime and increasing productivity.

Wide CD3 Flat Spray Nozzles:

At Spraytech Systems, we supply the CD3 Flat Spray Wide Nozzle and Deflected Spray DH Nozzle. There are a range of options available in terms of size, spray angle, etc., depending on the application and environment in which they are being used.

  • Thread sizes BSPT(M): ⅛″, ¼″, ⅜″, ½″, ¾″, 1″
  • Spray angle: 84˚ to 165˚
  • Capacity (litres per minute): 0.23 to 410
  • Pressure (bar): 0.2 to 4.0

Type CD3 nozzles and DH tips provide a very wide spray pattern up to 160˚, suitable for damping or wetting a moving product or air stream. Design operating pressures are generally lower than for other types of nozzles.

Rated flows are from 0.3 L/minute to 410 L/minute; operating pressures from 0.2 Bar to 4 Bar; spray angle is up to 165˚ depending on supply pressure.

Thread connections for Type CD3 are from 1/8″ to 1″ BSPT male.

How to order:

To order, please specify thread size, nozzle type, capacity code or required flow rate and operating pressure, and material of construction e.g. 1/4CD3-10S.

Applications

Wide CD3 Flat Spray & DH Deflected Spray Application:

These spay nozzles are used to damp moving products (e.g. cleaning fruit and vegetables) or dust control.

Find out more:

Documents

Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Wide Type CD3 Flat Spray Nozzle and DH Deflected Spray Nozzles or submit an enquiry below.

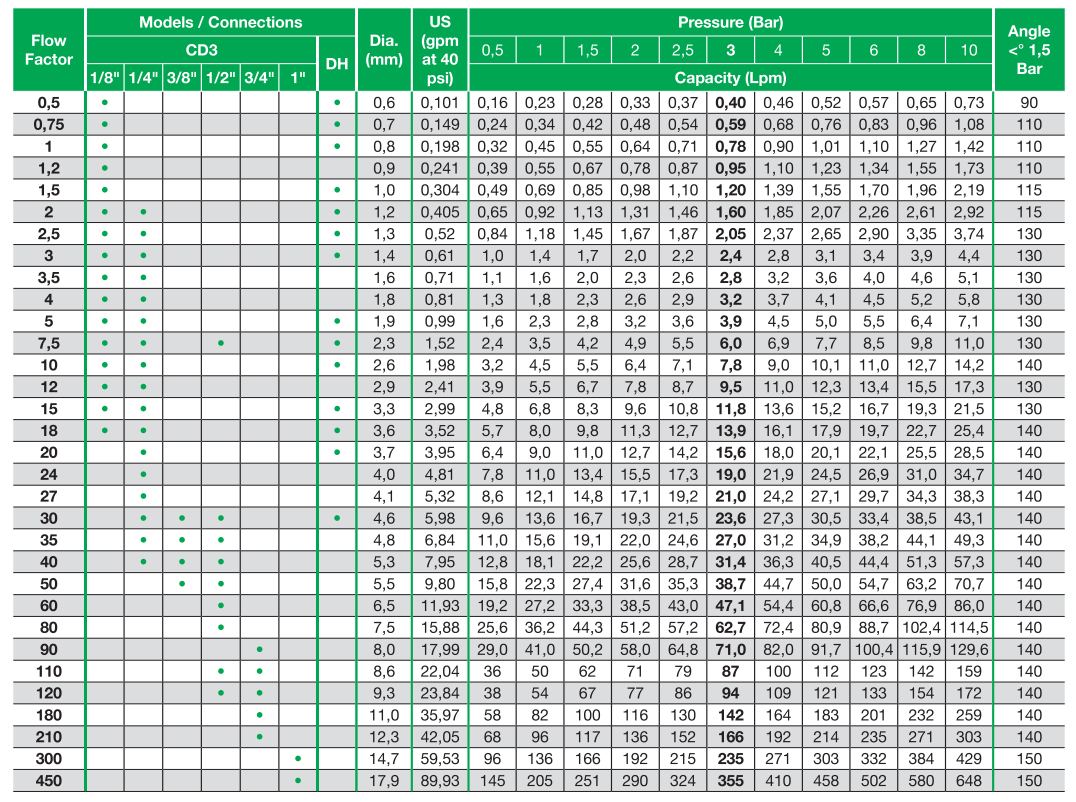

Wide Flat Spray Type CD3 & Type DH Nozzle Chart
