High Impact Flat Spray Nozzles – Type CD4



About Spraytech’s High Impact Flat Spray Nozzles:

The rated flows for the High Impact Flat Spray Nozzles Type CD4 are available of 1.4 L/ minute to 144 L/ minute at operating pressures from 2.0 Bar to 10 Bar; a small range of spray angles is available, more commonly 35° and 50°. Thread connections 1/8″ to 3/4″BSPT male.


  • Stainless Steel AISI Grade 303
  • Stainless Steel AISI Grade 316
  • Brass

How to order:

To order, please specify thread size, nozzle code, size code or flow rate and operating pressure, spray angle and material, e.g. 3/8 CD4 – 25/50 S.


High Impact Spray Nozzle Applications:

  • High impact washing in vehicle wash bays
  • Degreasing
  • Coal and gravel washing
  • Shower pipes in paper industry

Find out more:


Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type CD4 High Impact Flat Spray Nozzles or submit an enquiry below.

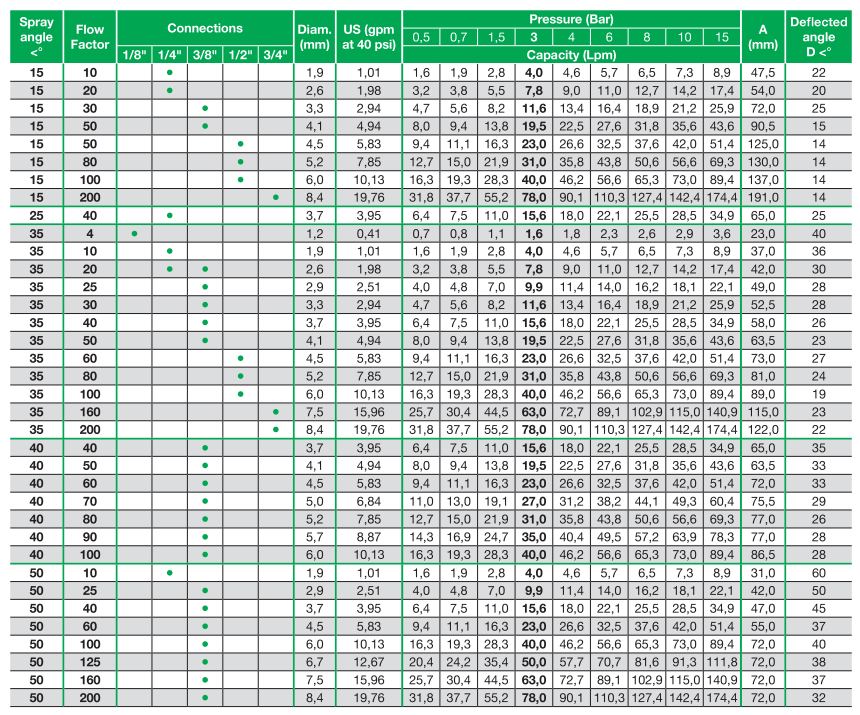

High Pressure Flat Spray Type CD4 Nozzle Chart
