Overview

About Spraytech’s Flat Spray Dovetail Tips:

Type CRC1 Flat Spray Dovetail Tips provides a uniform spray pattern. The ‘Dovetail’ in this product’s name refers to the shape of the nozzle tip, designed in a dovetail formation for easy maintenance and orientation. To complete this nozzle assembly, a welding nipple and nut are required. Threaded nipple are available on request.

Materials:

  • Brass
  • Stainless Steel AISI Grade 303
  • Stainless Steel AISI Grade 316L

Applications

Flat Spray Dovetail Tip Applications:

  • Industrial washing
  • Metal surface treating
  • Coal and gravel washing
  • Cooling
  • Degreasing

Find out more:

Documents

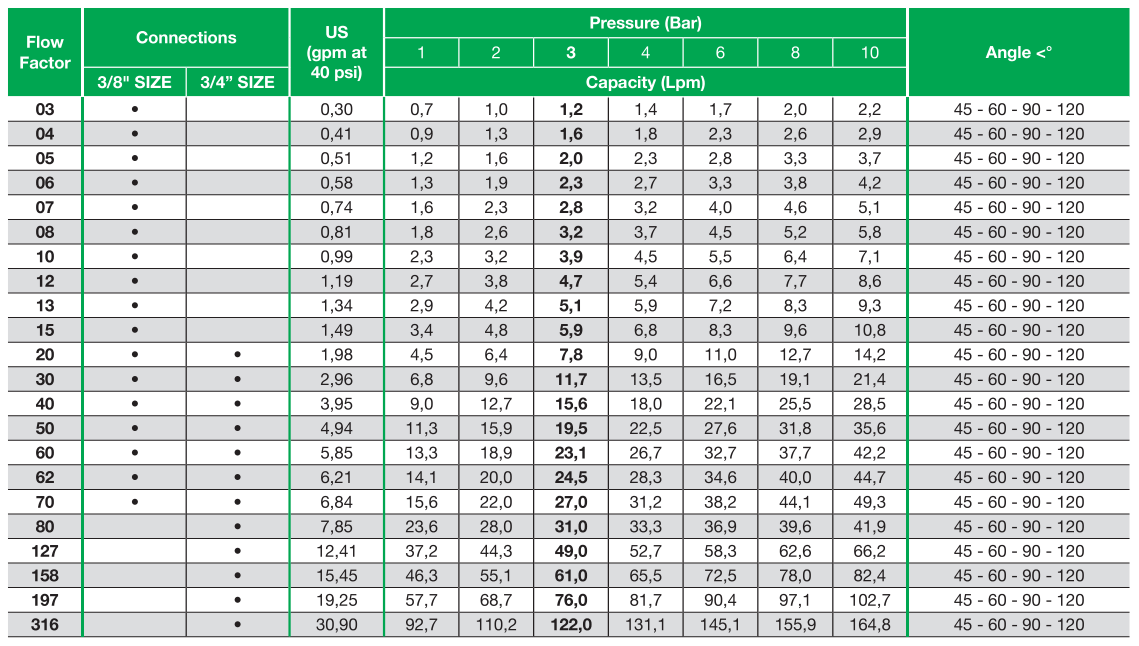

Flat Spray Dovetail Tip Nozzle Chart
