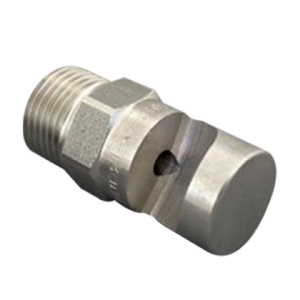

Low Capacity Flat Spray Nozzles – Type C2



About Spraytech’s Low Capacity Flat Spray Nozzle:

Low Capacity Flat Spray Nozzle Type C2 is a one piece, low capacity flat spray nozzle with an internal thread for an optional internal filter – the M7 plastic filter for the 1/8 nozzle, or a brass or stainless steel filter for the 1/4 nozzle. A full range of spray angles is available.

How to order:

To order, please specify thread size, model, capacity code or flow rate and operating pressure, spray angle, material and whether the filter is required – e.g. 1/4 MC2-015/110, SS with filter


Low Capacity Flat Spray Nozzle Applications:

  • Cleaning machines for carpets and furniture
  • Cooling
  • Lubricants
  • Surface treatments

Find out more:


Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type C2 Low Capacity Flat Spray Nozzle or submit an enquiry below.

Flat Spray Type C2
