Flat Spray Nozzles – Type C3 & Type C3E

Loading...
Loading...

Overview

About Spraytech’s Flat Spray Nozzles:

The Flat Spray Nozzle Type M3 and M3E are a simple, effective design for fluid distribution, with the wide set range of sizes, flow rates and spray pattern angles.

Rated flows are from 0.7 L/ minute to 1470 L/ minute; operating pressures from 1.0 Bar to 35 Bar; spray angles 0° – 15° – 25° – 40° – 50° – 65° – 80° – 95° – 110°. Thread connections from 1/8″ to 1 1/4″BSPT male.

Type C3E is compact design, available in 1/8″, ¬” and 3/8″ BSPT male.

Material:

  • Stainless Steel AISI Grade 316
  • Stainless Steel AISI Grade 303
  • Brass
  • Plastics (available on request)

How to order:

To order, please specify thread size, nozzle type, size code or flow rate and operating pressure, spray angle and material – e.g. 1/4 MC3E – 10/95 S.



Applications

Flat Spray Nozzle Applications:

  • Industrial washing
  • Metal surface treatment
  • Coal and gravel washing
  • Cooling
  • Degreasing

Find out more:

Documents

Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type C3 and C3E Flat Spray Nozzles or submit an enquiry below.

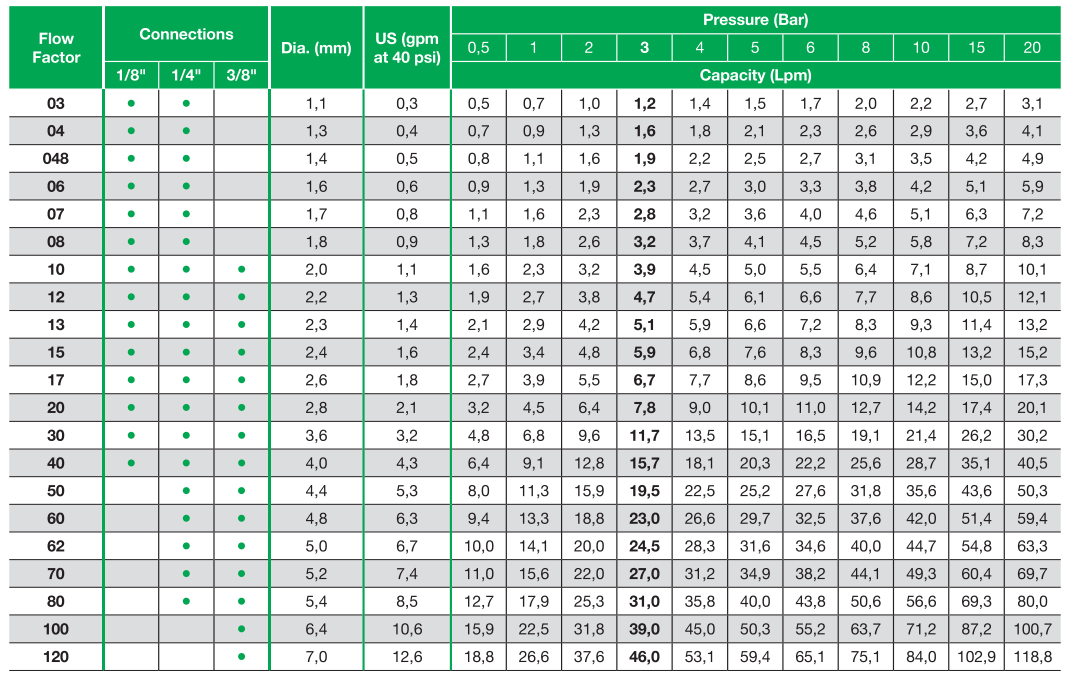

Flat Spray Type C3 Nozzle Chart
