Overview

About Spraytech’s Type B1 Full Cone Spray Nozzle:

Full Cone Nozzles Type B1 use an internal swirl plate to give a uniform full cone spray pattern.

Rated flows from 0.4 L/ minute to 150 L/ minute; operating pressures from 0.75 Bar to 7 Bar; spray angle 60° in a circular pattern. Thread connections from 1/8″ to 1″BSP, male or female.

Additional Information:

  • Types B one piece
  • Types BB three piece with removable cap

Materials:

  • Stainless Steel AISI Grade 303
  • Stainless Steel AISI Grade 316
  • Brass

How to order:

To order, please specify the thread size and type, nozzle capacity code or flow rate and operating pressure, and material – e.g. 3/8MB1-22S.

Applications

Type B1 Full Cone Nozzle Spray Applications:

  • Washing processes
  • Cooling
  • Foam dispersion
  • Chemical processing
  • Fire protection

Find out more here:

Documents

Unfortunately we currently do not have any documents, please contact us on (08) 9259 4350 for more information on our Type B1 Wide Full Cone Spray Nozzles or submit an enquiry below.

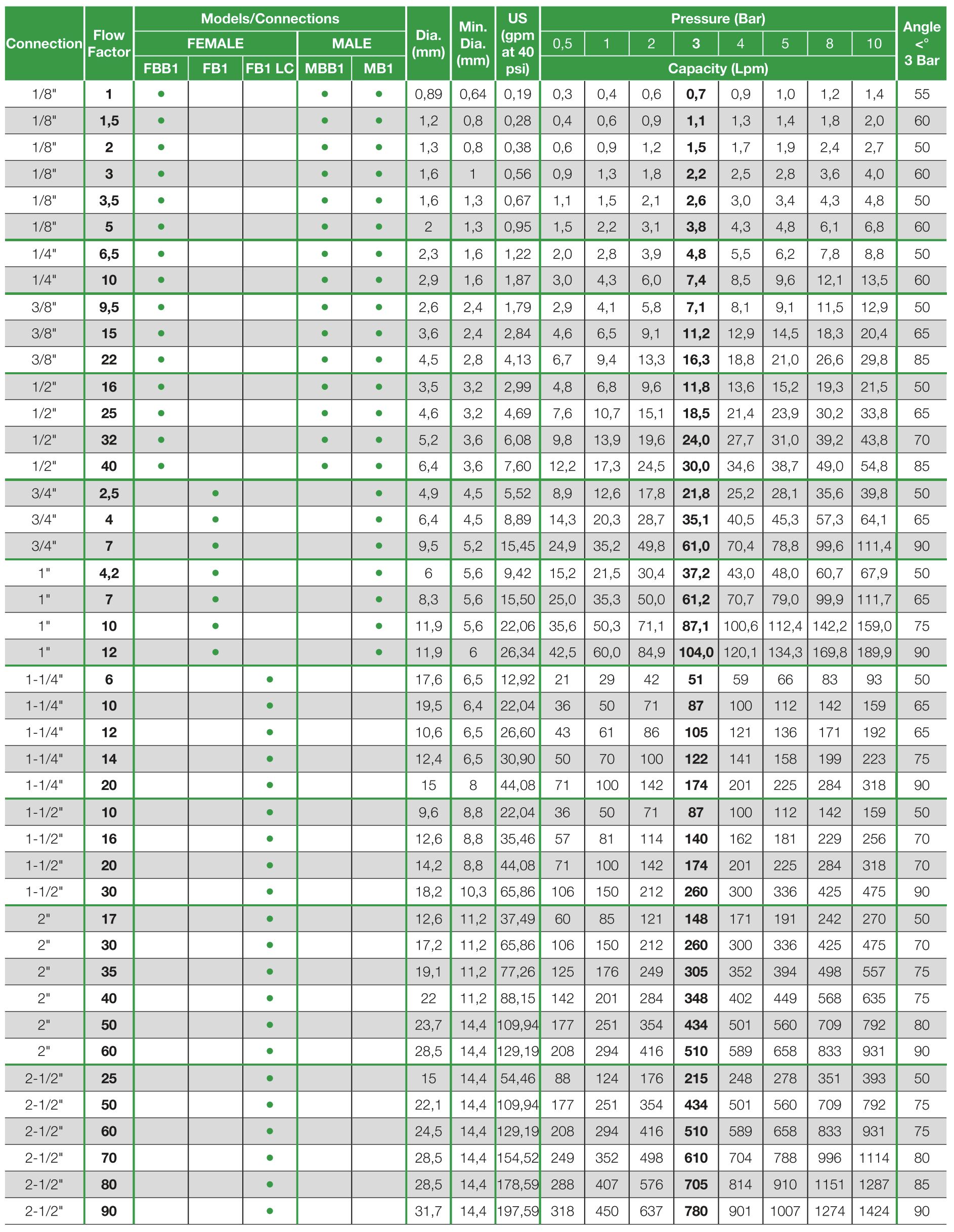

Full Cone Type B1 Nozzle Chart
