Asphalt Paving and Bitumen Nozzles



About Spraytech’s Asphalt Paving & Bitumen Nozzles:

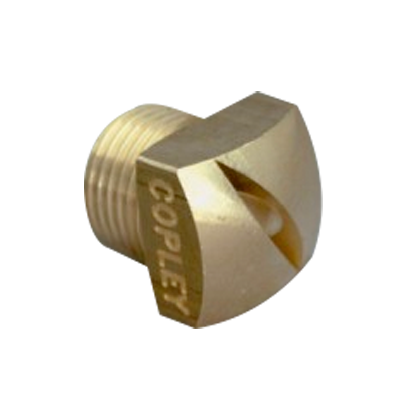

Asphalt Paving & Bitumen Nozzles by Copley are approved by Austroads and the Australian Asphalt Pavement Association. The nozzles are available with various orifice sizes to give different rates of application, and specially- designed end nozzles are available.

These nozzles, manufactured to meet this specification, are marked A, B or S (EA, EB or ES for End Nozzles) plus two numbers for the capacity size.

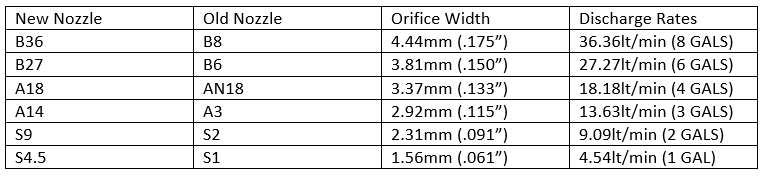

Range of sizes and discharge rates

bitumen asphalt table

For each size of intermediate nozzle, there is a corresponding END NOZZLE marked as:

EB36, EB27, EA18, (EA18W), EA14, ES9, ES4.5

The discharge rates of end nozzles are approximately double that of the same intermediate nozzles.


Asphalt Paving Bitumen Spray Applications:

Spraytech Systems supplies spray nozzles for liquid tar, binders and sealers, bitumen emulsion, and modified polymers for the asphalt paving industry.
